Specification
| Monitor Model | I-M641MW (Monitor) |
| Memory Built-In | Yes |
| Touch Panel | Yes |
| Power supply | DC 12-16V (supplied by Adaptor) |
| Resolution | 7 Inch TFT, 1440(H)x234(V) pixels |
| Wiring | 4 wires in polarity |
| Video signal | 1Vp-p, 75Ohm, CCIR standard |
| Dimension (mm) |
150 (H) x 208 (W) x 22 (D) |
| Door Station Model | I-C-846-2 (2 Units Door Station Camera) |
| Camera | 1/3" Colour CCD Sensor |
| Lens | 0.05 Lux Board Lens |
| Power supply | DC 12v (supplied by Monitor) |
| Min. Illumination | 0.05 Lux |
| Material | Aluminium alloy panel |
| Viewing Angel | 72 Degree Wide Angle |
| Night View Source | 6 infrared LEDs |
| Resolution | 700 TV Line Dual Communication |
| Installation | Flush Mounted |
| Dimension (mm) | 195 (H) x 100 (W) x 38 (D)mm |
Features
| 7 inch Colour TFT Touch Screen Monitor |
| Brightness and volume can be adjusted |
| Hands free conversation for ease and comfort |
| Up to 4 monitors connected directly |
| 2 door stations connected directly |
| Single press button to turn on the outdoor bell camera from the handset |
| Outdoor camera with built-in infrared(IR) for night time viewing |
| Unlock the door with a single press of a button on the monitor |

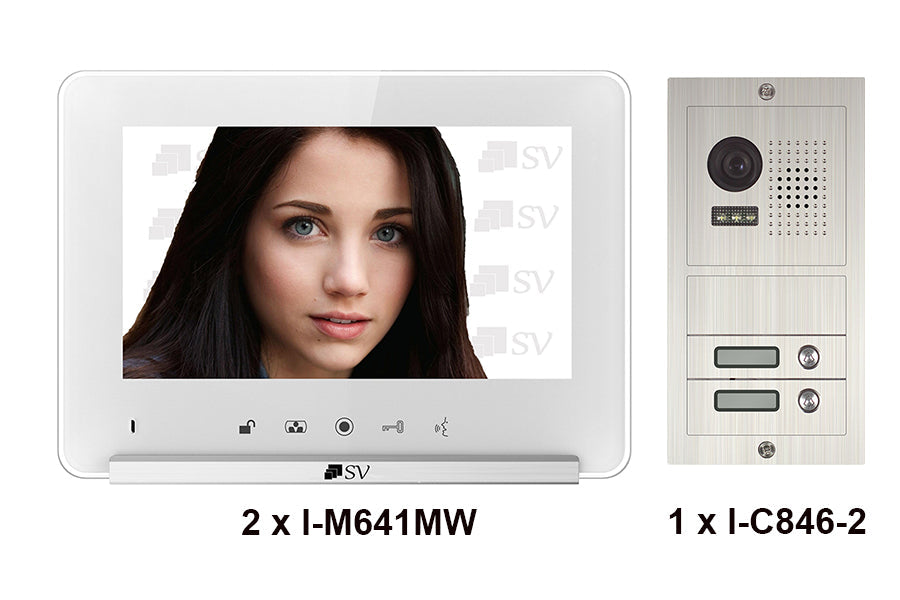

| Kit Package includes: 2 x Monitor, 1 x 2 Units Door Station, 2 x Power supplies for monitor, 1 x Power supply for Door Station,1 x Quick Manual |
| Nano-glass shield camera |
| Aluminium alloy panel |
| Built-in 6 LEDs for night vision |
| Blue light name plate display |
| Anti-vandal and weather proof |
| Surface Mounted Installation |
| 4 Wires Villa System |
| Suitable for home, villa and commercial office |
| 12 Months Warranty |
SV Intercom Brochure Click on the PDF Icon :-
