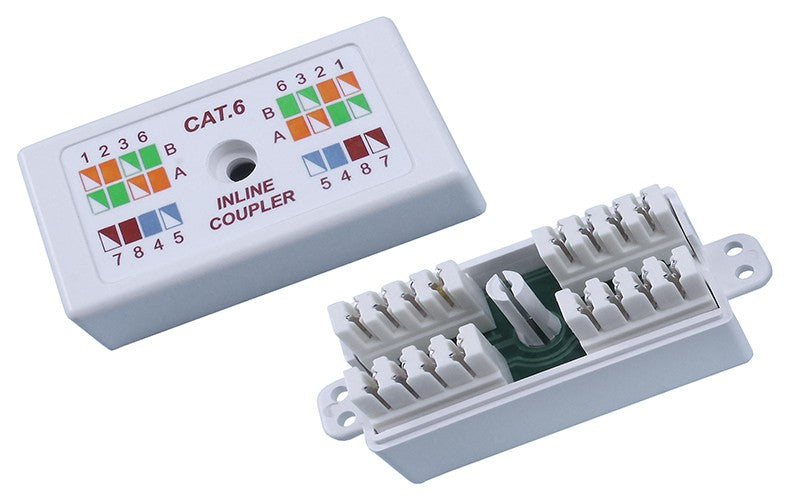

DINTEK 1701-01036 Cat.6 Inline Block to Block Type Unshielded Coupler

DINTEK'S Cat.6 Block to Block Inline Couplers are perfect for bridging two cables that may require extending, or where damage to a cable necessitates repair without having to re-run a cable. Designed to mount onto existing (in ceiling) support structures, these junction boxes are complete with two mounting cable ties. The units utilize two simple 110 punch-downs IDC blocks connected via a PCB to connect two cables.

• Permanent join when using solid-core network cables
• Designed for use in Cat.6 installations
• Punch down tool required for installation
• Dimensions: 48 x 25.8 x 24.7mm (LxWxH)

• Insulation Resistance: 500M ohms (min.)
• Contact Resistance: 20m ohms (max.)
• Current Rating: 1.5 amps
• DC Resistance: 0.1 ohms (max.)
• Withstanding Voltage: 1000 VAC RMS@ 60Hz / 1 min
• IDC Punch Down Cycle: Over 250 cycles
• Operation Temperature: -40 DC - + 70 DC

• Body: Fireproof ABS UL-94VO
• PCB: FR-4 / UL-94VO
• IDC Body: Fireproof ABS UL-94VO
• IDC Pin: Bronze & Tinned
• |IDC Description: For 22-26 AWG
